2016 Victory Gunner: Preview

Victory's drag-inspiring cruiser is back for 2016

By Staff Photos courtesy of Victory Motorcycles

August 17, 2015

Downtown, the highway, or the racetrack, the 2016 Victory Gunner is prepared for any situation. 106 cubic inch Freedom V-Twin engine. Aggressively muscular styling. The Gunner is the inspiration for their NHRA team, proving that whenever the light turns green, a Victory Cruiser is ready to take off.

The Gunner is comfortable, quick, stylish, and ready to be accessorized and customized however you see fit. The bike that inspired the drag racers ridden by Matt and Angie smith is back for 2016.

Check out all of the accessories, color options and more at VictoryMotorcycles.com

VICTORY GUNNER	SPECIFICATIONS
ABS	NOT EQUIPPED
DRY WEIGHT	649 LB (294 KG)
DISPLACEMENT	106 CI / 1731 CC
OIL CAPACITY	5.0 QTS / 4.73 LTR
BASE MSRP	$12,999

VICTORY GUNNER	ENGINE AND DRIVETRAIN
BATTERY	YTX20HL-BS/12 VOLT 18 AMP HOUR 310 CCA
CHARGING SYSTEM	48 AMPS MAX OUTPUT
COMPRESSION RATIO	9:4:1
COOLING	AIR & OIL
DRIVE/DRIVEN CLUTCH	WET MULTI-PLATE/DIAPHRAGM SPRING
EXHAUST	DUAL-STAGGERED SLASH-CUT WITH COMMON VOLUME
FUEL SYSTEM	ELECTRONIC FUEL INJECTION WITH DUAL 45MM THROTTLE BODY
TRANSMISSION/FINAL DRIVE	CARBON FIBER REINFORCED BELT
TRANSMISSION/PRIMARY DRIVE	GEAR DRIVE WITH TORQUE COMPENSATOR
TRANSMISSION TYPE	6 SPEED OVERDRIVE/CONSTANT MESH
VALVE TRAIN	4 VALVES PER CYLINDER, HYDRAULIC LIFTERS & CAM CHAIN ADJUSTERS
BORE X STROKE (MM)	101 X 108 MM
ENGINE TYPE	FREEDOM 106/ 6 V-TWIN

VICTORY GUNNER	SUSPENSION
FRONT SUSPENSION	TELESCOPIC FORK/ 5.1" (130MM)
REAR SUSPENSION	SINGLE MONOTUBE GAS/PRELOAD ADJUSTABLE/3.0" (75MM)

VICTORY GUNNER	BRAKES
BRAKE SYSTEM TYPE	NOT LINKED
FRONT BRAKES	SINGLE 300 X 5MM/ FLOATING ROTOR/ 4 PISTON CALIPER
REAR BRAKES	SINGLE 300 X 5MM/ FLOATING ROTOR/ 2 PISTON CALIPER

VICTORY GUNNER	DIMENSIONS
FUEL CAPACITY (LITRES)	4.5 GAL / 17.0 LTR
GVWR	1151 LBS / 523 KG
GROUND CLEARANCE	4.7 IN / 120 MM
RAKE/TRAIL	32°/6.7 IN (170.0 MM)
SEAT HEIGHT	25.0 IN / 635 MM
WHEELBASE	64.8 IN / 1647 MM
OVERALL LENGTH (IN./MM.)	93.4 IN / 2372 MM

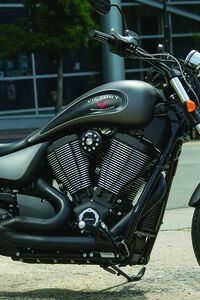

2016 Victory Gunner Photo courtesy of Victory Motorcycles

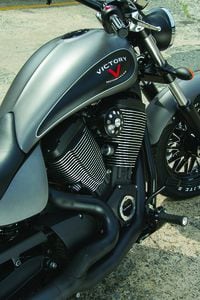

2016 Victory Gunner in Suede Sagebrush Green Metallic Photo courtesy of Victory Motorcycles

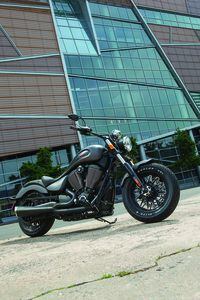

2016 Victory Gunner in Matte Titanium Photo courtesy of Victory Motorcycles
